FRP Fiberglass Structural Composites

MOLDED FIBERGLASS GRATING offers one piece unitized construction that is ideal for walking surfaces where multiple penetrations are required. Its high resin content provides maximum protection in corrosive environments. Available with either a meniscus or gritted surface, molded grating provides sure footed traction for every application.

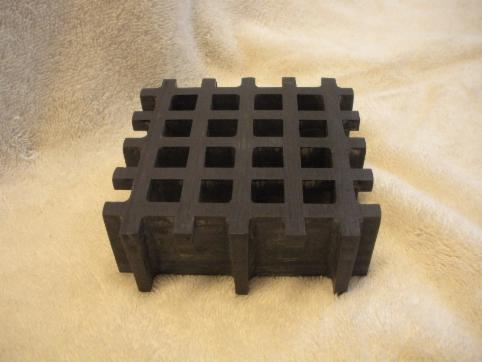

Molded square mesh grating offers bi-directional strength.



MESH PATTERNS:

 SQUARE .50" /  1.5" / 2"   RECTANGLE 1" X 4"

SURFACE:

 MENISCUS / APPLIED GRIT

RESIN SYSTEM / COLORS:

                 Polyester = Safety Yellow / Dark Green / Dark Gray

                 Vinyl Ester  =  Orange / Dark Gray

THICKNESS   /  PANEL  SIZE

.50"________ 48" X 144"

1.0"________ 36" X 120"

                        48" X 96"

                                                           48" X 144"

1.5"________ 36" X 120"

                        48" X 96"

                        48" X 144"

                        60" X 120"

2.0"________ 48" X 144"

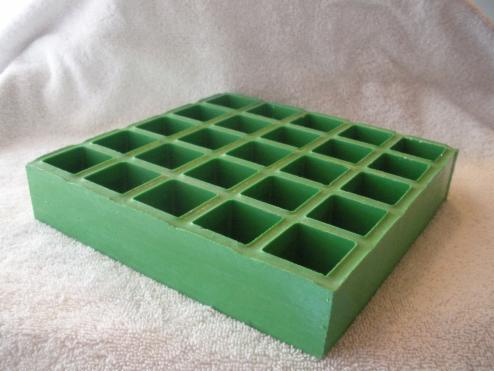

Molded Grating with Meniscus Surface.

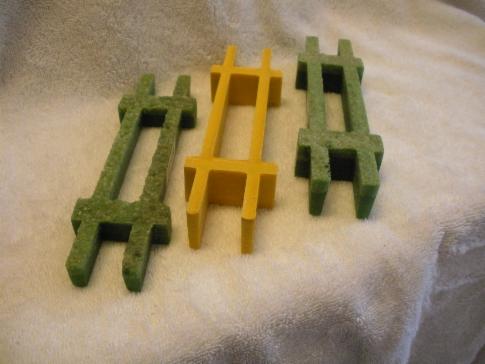

Rectangle Mesh Molded Grating

Micro Mesh Molded Grating 1/2" x 1/2" opening

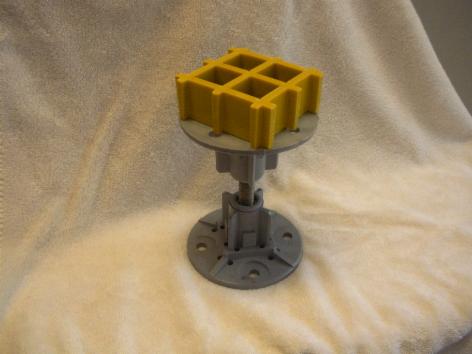

A variety of fixed height and adjustable pedestal are available for low cost support.
