Fiberglass Structural Composites

Pultruded Fiberglass Grating is constructed with independent load bars connected by tie bars on 6" or 12" centers to create the panel. Pultruded grating contains a higher percentage of fiberglass reinforcements and is able to support a greater load across longer spans than molded grating. Pultruded grating is unidirectional and must be oriented with the load bars in the span direction for proper support. Pultruded grating is offered in "I" or "T" load bar configurations with a variety of open area spacing to suit your applications. "I" bar grating is typically used in industrial applications where "T" bar is used for pedestrian applications including ADA compliant walkways.

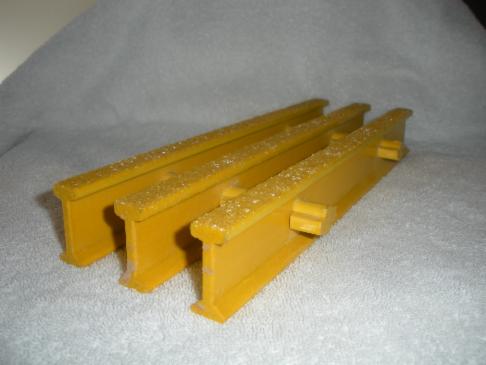

INDUSTRIAL "I" BAR PULTRUDED GRATING

  SERIES    DEPTH   BAR SPACING  OPEN AREA   WT/SQ FT

   I6010         1"               1.5"                  60%               2.4 lbs

   I5010         1"               1.2"                  50%               3.3 lbs

   I4010         1"               1.0"                  40%               3.4 lbs    ADA Compliant

   I6015         1.5"            1.5"                  60%               2.8 lbs

   I5015         1.5"            1.2"                  50%               3.5 lbs

   I4015         1.5"            1.0"                  40%               4.1 lbs    ADA Compliant

  T5020         2"               2.0"                  50%               3.1 lbs

  T3320         2"               1.5"                  33%               4.0 lbs    ADA Compliant

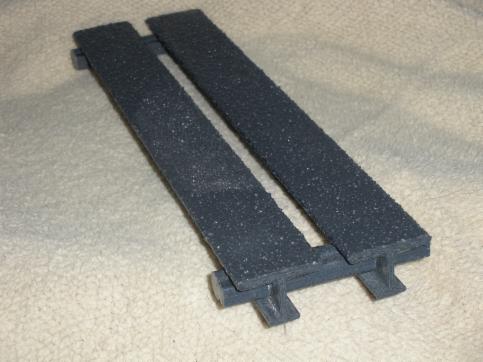

PEDESTRIAN "T" BAR PULTRUDED GRATING

SERIES    DEPTH    BAR SPACING    OPEN AREA    WT/SQ FT

T3810         1"                2.4"                 38%               1.9 lbs

T2510         1"                2.0"                 25%               2.3 lbs    ADA Compliant

T1210         1"                1.7"                 12%               2.7 lbs    ADA Compliant

T3815         1.5"             2.4"                 38%               2.7 lbs

T2515         1.5"             2.0"                 25%               3.2 lbs    ADA Compliant

T1215         1.5"             1.7"                 12%               3.6 lbs    ADA Compliant

"T" Series pultruded grating is available with a "sugar grit" surface for barefoot applications. Ideal for pools, boat docks, and playgrounds.
